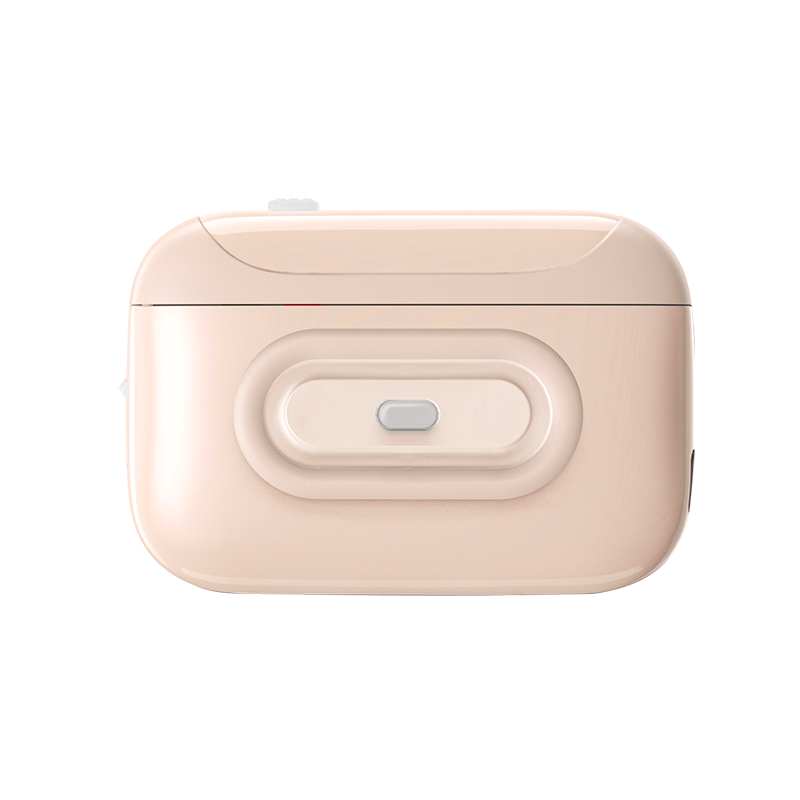

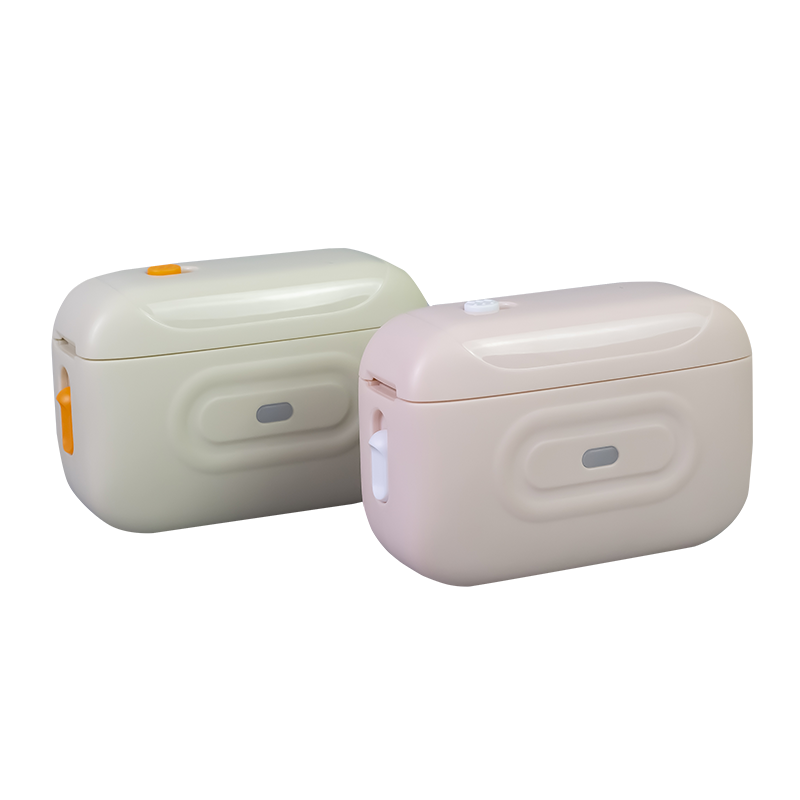

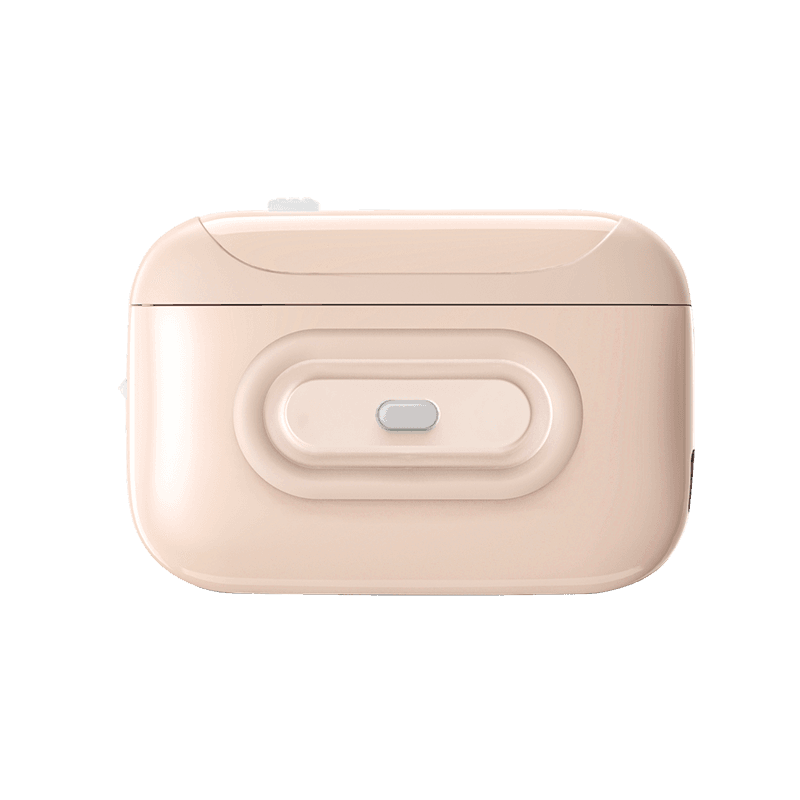

M10
M10 is a compact portable label printer for retail, logistics, office organization, and mobile labeling scenarios. Final specifications and launch imagery should be confirmed before production use.
Technical specifications
| Printing Performance | Printing Method | Thermal Line Printing |
|---|---|---|
| Printing Speed | 20mm/s（full power） | |
| Resolution | 203dpi（8dot/mm)，96dot/line | |
| Effective Printing Span | 12mm | |
| Feeding Step | 0.125mm | |
| Western Character | ASCII characters 12x24 | |
| Chinese Character | Standard 24×24dot Matrix GB18030Character set | |
| Barcode Printing | One-Dimensional UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、CODE93、CODE128、Two-Dimensional QRCODE、PDF417,Etc | |
| Graphic Printing | Support | |
| Bitmap Printing | Support | |
| Auto Table | Support | |
| Bitmap Download | Support | |
| Detection Function | Abnormal Detection | Lack of paper detection、Low voltage detection、overheating detection，Buzzer will alarm once abnormity appeared. |
| Auto sleep function | yes | |
| Interface | wired | TYPE-C USG Port |
| wireless | Bluetooth Interface | |
| Power | Way of supply | 1000mAh, 3.7V rechargeable lithium battery; continuous printing capacity of 70-80m at 12.5% print density on a full charge. |
| Way of charging | Charging while the device is on: approximately 2 hours; standby time: ≥24 hours. | |
| Reliability | Printer head life | 50km |
| Printing Paper | Paper type | 15mm label paper, paper diameter less than or equal to 40mm |
| Loading Method | Clamshell、Easy Paper Loading. | |
| Cutting Method | Manual paper cutter (with safety lock function) | |
| Physical Property | Working Temp. Humidity | 0～50℃/10～80%RH |
| Storage Temp. Humidity | –20～60℃/10～90%RH | |
| Weight(Not Including Printing Paper) | About137g(Including Battery) | |
| Outlook size | 102mmL×69.5mmW×44.2mmH |
