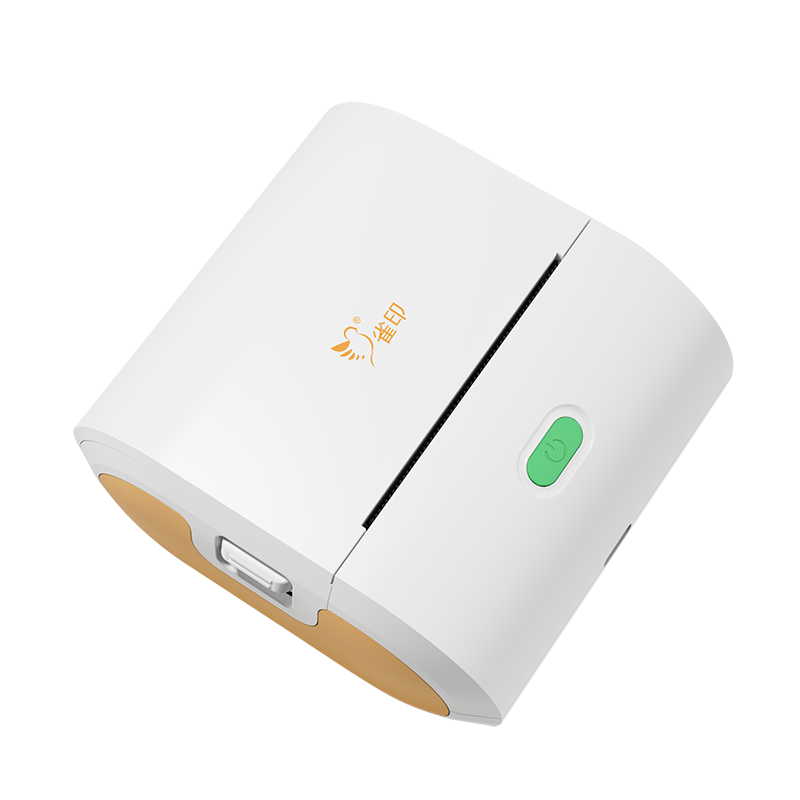

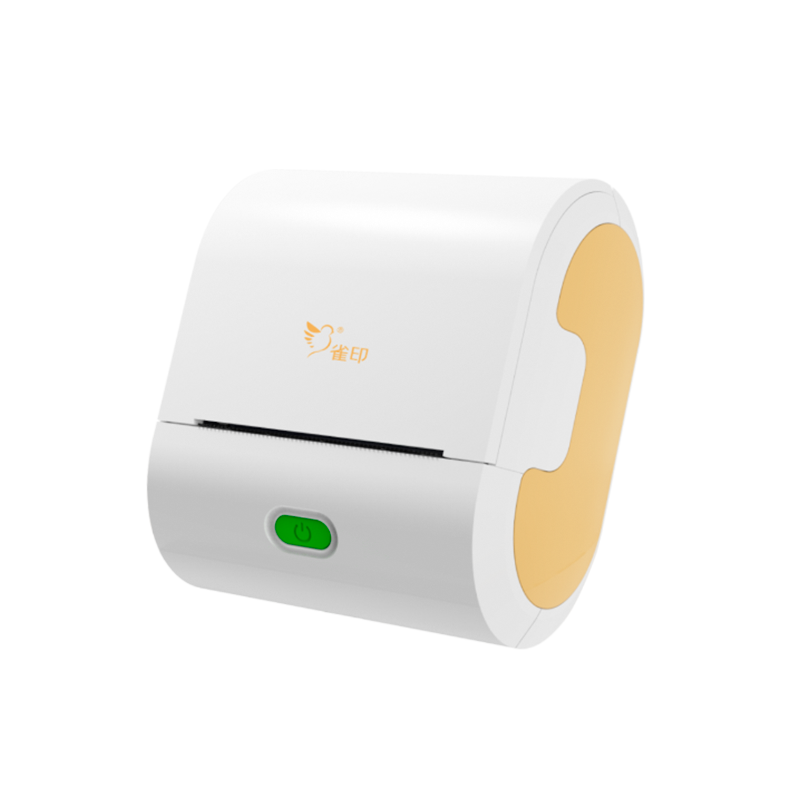

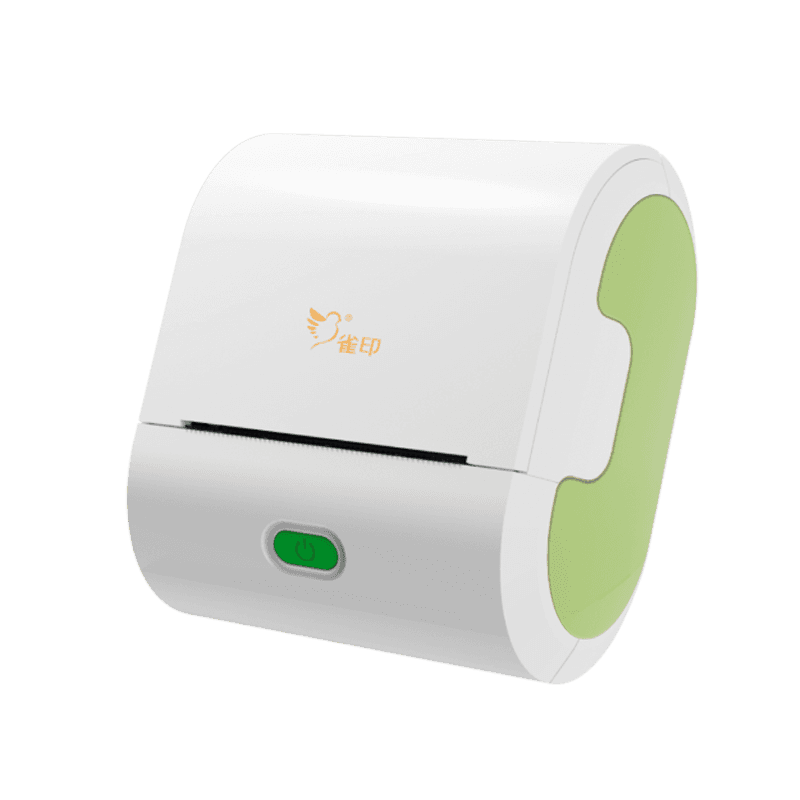

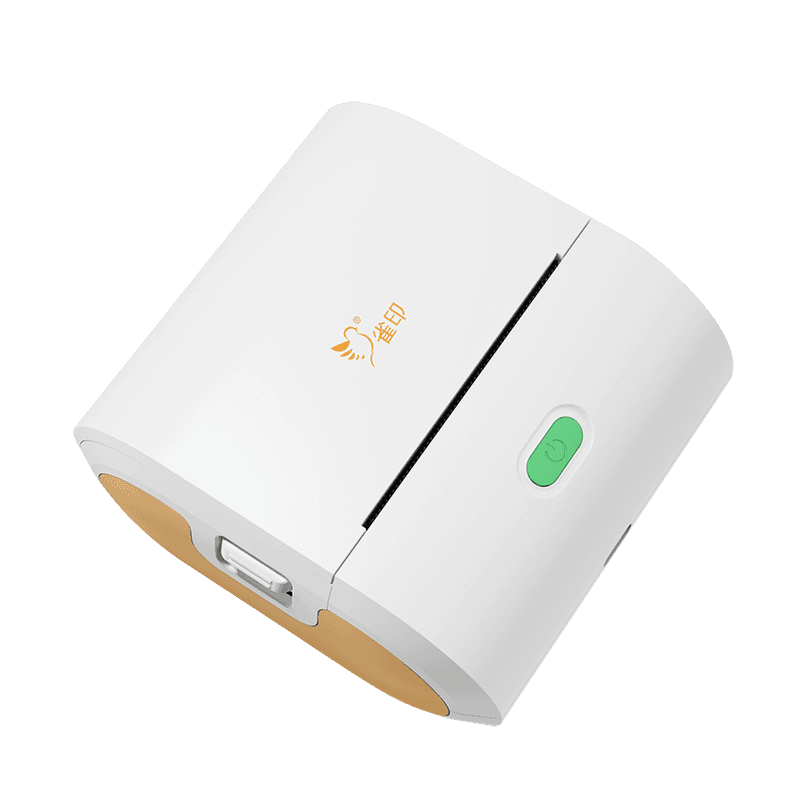

V10
RD-V10 is Stylish and exquisite design, compact size, high-speed, smooth, and clear printing; supports thermal and label paper printing; compatible with Choin App.
The printer is widely used in industries such as home, office, medical, fire protection, power, weighing instruments, and retail for printing invoices and labels.
Technical specifications
| Printing Performance | Printing Method | Thermal Line Printing |
|---|---|---|
| Printing Speed | 60mm/s（full power） | |
| Resolution | 203dpi（8dot/mm)，384dot/line | |
| Effective Printing Span | 48mm | |
| Feeding Step | 0.125mm | |
| Western Character | Supports 96 standard ASCII characters in a 5×7 dot matrix; supports 352 extended ASCII characters in a 6×8 dot matrix; supports user-defined characters in a 6×8 dot matrix. | |
| Chinese Character | Configured with a 24×24 dot matrix GBK character set, with optional 16×16 dot matrix and 12×12 dot matrix GBK Level 1 and 2 character sets. | |
| Barcode Printing | 1D barcode, QR code. | |
| Graphic Printing | Support | |
| Bitmap Printing | Support | |
| Bitmap Download | Support | |
| Detection Function | Abnormal Detection | Lack of paper detection、Low voltage detection、overheating detection，Buzzer will alarm once abnormity appeared. |
| Black mark location | Selectable | |
| Auto sleep function | yes | |
| Interface | wired/wireless | Bluetooth interface, USB interface, serial port (optional) |
| Control System | Buffer | 2K-32K |
| Command System | Dedicated APP command system (optional ESC/P, TSPL) | |
| Driver | Windows XP/Windows 7/Windows 10 drivers, mobile app editing | |
| Power | Way of supply | 7.4V/1000mAh |
| Way of charging | Type-C/5V charging, charging current 1A, full charge takes about 4 hours | |
| Reliability | Printer head life | 50km |
| Printing Paper | Paper type | Thermal paper: Maximum paper width is 57±0.5mm, and outer diameter is ≤Ø50mm.Label width < 20mm < 57mm, outer diameter ≤ Ф50mm, supports labels with a minimum height of 10mm (paper seam requirement 4mm or more), and thickness less than 0.15mm. |
| Loading Method | Clam shell ,Easy Loading | |
| Cutting Method | Manual | |
| Physical Property | Working Temp. Humidity | 0～50℃/10～80%RH(Relative Humidity) |
| Storage Temp. Humidity | –20～60℃/10～90%RH(Relative Humidity) | |
| Weight(Not Including Printing Paper) | About 205g(including battery) | |
| Outlook size | 93.6mmL×90.2mmW×55.6mmH |
