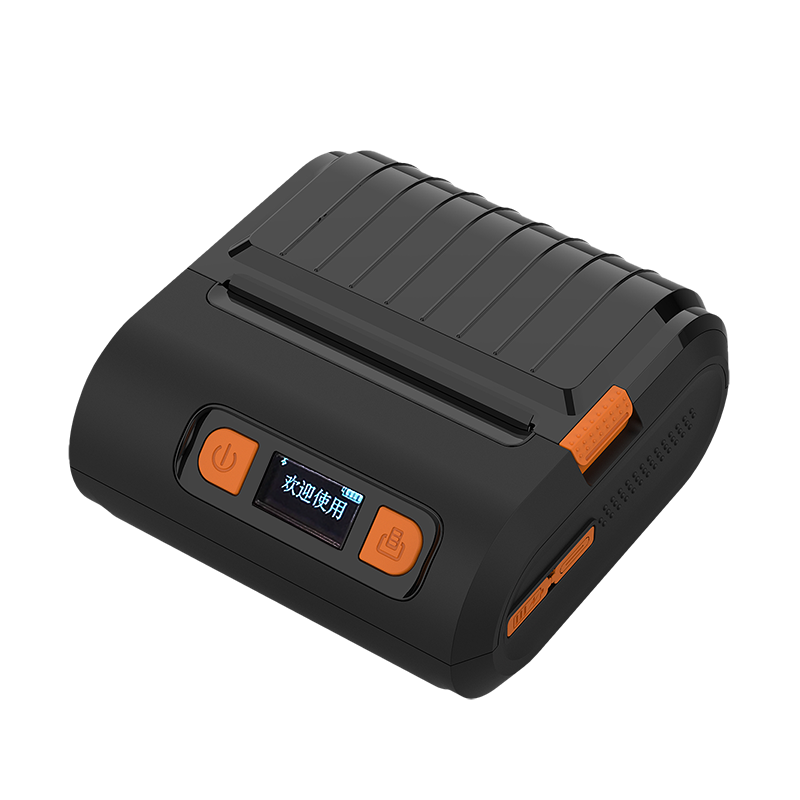

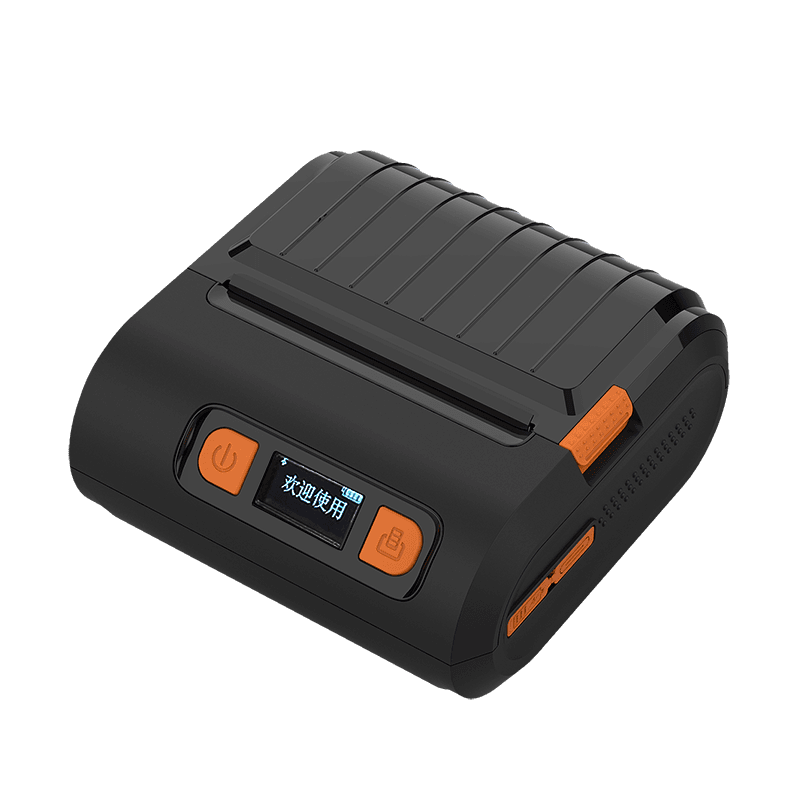

V30
V30 is prepared as the first WordPress-managed product entry for CHOIN headless CMS validation. Final specifications and support files should be confirmed before production launch.
Technical specifications
| Printing Performance | Printing Method | Thermal Line Printing |
|---|---|---|
| Printing Speed | 60mm/s（full power） | |
| Resolution | 203dpi（8dot/mm)，576dot/line | |
| Effective Printing Span | 72mm | |
| Feeding Step | 0.125mm | |
| Western Character | Supports 96 standard 5×7 dot matrix ASCII characters; supports 352 extended 6×8 dot matrix ASCII characters; supports 6×8 dot matrix user-defined characters. | |
| Chinese Character | Configured with a 24×24 dot matrix GBK character set, with optional 16×16 dot matrix and 12×12 dot matrix GBK Level 1 and 2 character sets. | |
| Barcode Printing | 1D barcode, QR code. | |
| Graphic Printing | Support | |
| Bitmap Printing | Support | |
| Bitmap Download | Support | |
| Detection Function | Abnormal Detection | Lack of paper detection、Low voltage detection、overheating detection，Buzzer will alarm once abnormity appeared. |
| Black mark location | Selectable | |
| Auto sleep function | yes | |
| Interface | wired/wireless | USB interface models: Type-C interface Serial interface models: Mini-USB (standard RS232 or TTL) Wireless interface models: Bluetooth |
| Control System | Buffer | 32K |
| Command System | ESC/P print command, compatible with IBM/EPSON ESC/P TSPL command | |
| Driver | WINXP/WIN7/WIN10 Driver | |
| Power | Way of supply | 7.4V/2500mAh |
| Way of charging | Type-C/5V charging, charging current 2A, full charge takes about 4 hours | |
| Reliability | Printer head life | 50km |
| Printing Paper | Paper type | Thermal paper: Maximum paper width 80±0.5 mm, outer diameter ≤Ø50 mm. Label paper: 20 mm < paper width < 80 mm, label height greater than 10 mm. |
| Loading Method | Clam shell ,Easy Loading | |
| Cutting Method | Manual | |
| Physical Property | Working Temp. Humidity | 0～55℃/10～80%RH(Relative Humidity) |
| Storage Temp. Humidity | –20～60℃/10～90%RH(Relative Humidity) | |
| Weight(Not Including Printing Paper) | About 370g(including battery) | |
| Outlook size | 116mmL×112mmW×60mmH |
